Deep groove ball bearings
Deep groove ball bearings are suitable for moderate radial or thrust loads and combined radial/thrust loads. The metric DGB series follows ISO design practices for boundary dimensions, Bore, O.D., width and corner radii. Both metric and inch series bearings are supplied with a two-piece machined brass cage, ball centered in most sizes and land riding in the very large bearings. Unless otherwise specified by the end user, these bearings will automatically be supplied with a C3 clearance for metric bearings and B3 for inch series ball bearings. This is necessary to provide some mounted clearance since these bearings are typically mounted on a shaft with an interference fit.
Please refer to our engineering section for tolerances, internal clearances, and recommended shaft and housing fits for these bearings. Because of their versatility, deep groove ball bearings are used in many applications throughout multiple industries in electric motors, pumps, gear boxes and rolls. American Roller Bearing’s brass cage and heavy designs are well suited for these tough applications. We offer deep groove ball bearings from 8”/200mm bore to 63”/1600mm bore.
The complete metric bearing numbers will have the “M” cage and “C_” clearance suffixes added to the bearing number as follows:
DGB61960MC3 This is a 300mm bore bearing with C3 clearance (.0043” - .0071‘)
Complete inch bearing numbers will simply have the “B__” clearance suffix added while still providing a machined brass cage as follows:
130DGB553B3 This is a 13.0000 in. bore bearing with B3 clearance (.122” - .203”)
Deep Groove Ball common suffixes:
B3, B4 ETC. - INTERNAL CLEARANCE, INCH SERIES
C3, C4 ETC.- INTERNAL CLEARANCE, METRIC SERIES
D - TWO ROW BEARING
M - MACHINED BRASS CAGE
N - ONE 45 DEGREE OUTER RACE FACE NOTCH
N2 - TWO 45 DEGREE OUTER RACE FACE NOTCHES

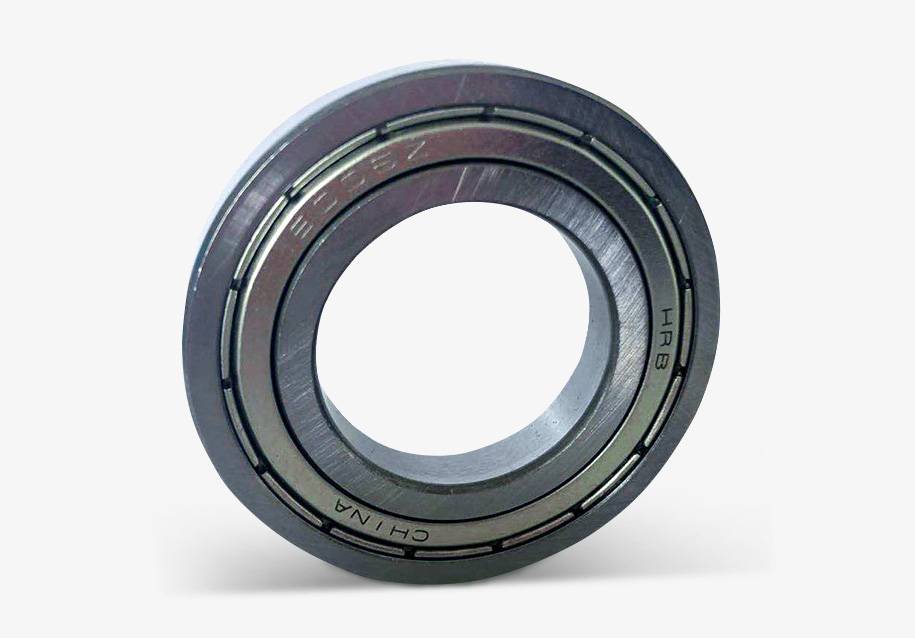

16005-ZZ Deep Groove Ball Bearing
Gcr15 Bearing steel
ZZ RZ 2RS
P0 Z2 Z3 Z4
OEM,ODM Or Customized
30-45 days after samples approved and deposit received.
T/T, L/C at sight
Material: Select high-quality bearing steel, which not only has long service life, but also has higher precision and lower noise
Performance: higher limit speed, low friction and low noise, and not suitable for hot, can withstand large axial load, simple structure and convenient use
Quality: higher quality, replace imported bearings, very durable, avoid the trouble of repeated disassembly and repair
Electric motors,machine tools,automobiles,precise devices,home appliances,chemical machineries,general machineries,agricultural machineries,etc
