Motor Pillow Block Bearing

Motor Pillow Block Bearing

Motor Pillow Block Bearing

Model

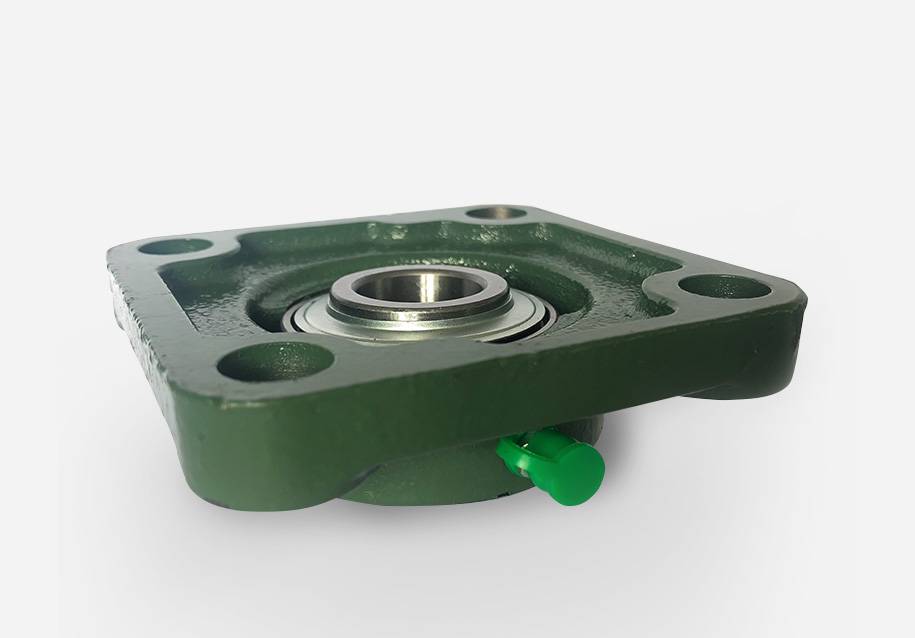

UCF208 Spherical Bearing with seat
MOQ
1PCS
Payment
T/T, L/C at sight
FOB Port
QINGDAO
Cetification
ISO9001:2000
Delivery Time
30-45 days
Serives
ODM Or Customized
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:

High Speed Pillow Block Bearings

High Speed Pillow Block Bearing for Steam Turbine

With our advanced CNC machinery that possesses the capability to produce accurate spherical contours, Jensen Machine builds and supplies high-quality spherical seat bearings that meet with client specifications. Our sophisticated technology provides a +.000/-.001 inch precision tolerance, concentricity with bore within .001 inches, and squareness of faces to bore within .001 inches.

Constructed from 1026 hot finish steel tubing base material and Grade 2, ASTM B23-00, Alloy 2 Babbitt lining, our pillow block bearings, or, more commonly referred to as journal bearings, are equipped with a split steel shell and a spherical outside diameter with pressure dam in bore. For use by the steam turbine industry, our journal bearings are packaged in special boxes that assure safe transport for on-time delivery to this New York based client.

PRODUCT FEATURES

The pillow block bearing can be easily and effectively self-aligning the mounting error, and can be easily installed on various industrial shafts, which is particularly useful in the frame of the equipment. The product range of the bearing housing is very wide. There are vertical seats, various flanged seats, keyed seat, round seat, etc. The material is gray cast iron seat, ductile iron seat, steel stamping seat and stainless steel seat. And plastic seats, etc.

Product information

Style Name

UCF208 Mounted Spherical Bearing

Weight


Size

40*132*101.5*43mm

Material

Gcr15 Bearing steel,Cast iron seat

MOQ

50PCS

Vibration

V1 V2 V3 V4

Precision

P0 P4 P5 P6

Cage

Steel

Service

OEM,ODM Or Customized

Production Time

30-45 days after samples approved and deposit received.

FOB Port

QINGDAO

Payment Term

T/T, L/C at sight

Feature

The Mounted spherical bearing is composed of outer spherical bearing and bearing seat. It does not need to be designed separately when used. It has small size and simple structure. It can be directly bolted to the design part of the mainframe. It is easy to use

Simple and practical, the bearing seat has a monolithic structure, large bearing capacity and good rigidity. The bearing and the bearing seat can be interchanged, that is, the same bearing seat can be installed with different types of bearings; similarly, the same type of bearing can be selected for various types of bearing housings

Automatically adjustable: The spherical bearing with seat can work under different shafts of the two bearing seats, and the maximum automatic adjustment angle can reach 2°

Attachment assisted, the inner diameter of the outer spherical bearing with a "+" tolerance, forming a clearance fit with the shaft, through the top wire, eccentric sleeve or adapter sleeve on the inner ring, the bearing is fixed on the shaft, reducing the shaft The accuracy requirements make it extremely convenient to install or replace bearings

The working environment is small. The spherical bearing with seat is generally pre-filled with grease. It is double-layer or three-lip seal. It is suitable for use in dust, muddy water and corrosive media. It is good for the main machine

Accuracy advantages, the spherical bearing with seat has good rotation accuracy

Applications

Harvester, straw returning machine, thresher, etc
