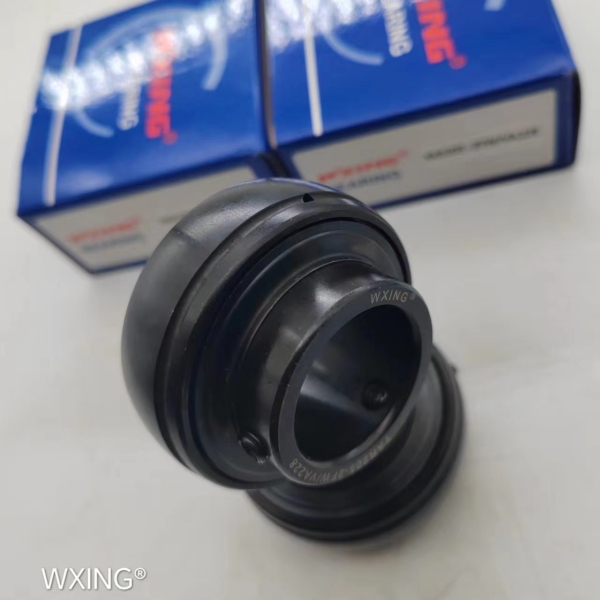

Type:Pillow block houseing beairng
Item number: YAR205-2FE/VA228
High temperature bearing
Weight:0.19kg
VA 228Fitted with a coronet cage of pure graphite, which opens up additional application areas for these high-temperature bearings up to 350 *C Minute quantities of graphite power released by the cage during rotation provide adequate lubrication for the bearing Two shields preventing the entry of solid contaminants (2F/VA228) 2F=Standard Contact Seal With Additional Plain Flinger On Both Sides Of The Bearing. VA228=(Segment Special Treat., Code 3)=Bearing With A “Coronet” Cage Of Graphite For Temperatures -150°C/+350°C.
Outside diameter | d2 | 52 | mm |
chamfer dimension | rmin | min.0.6 | |
Distance from locking device side face to thread centre | B4 | 5 | mm |
Width Outer ring | C | 15 | mm |
Bore diameter | d | 25 | mm |
Distance from locking device side face to raceway centre | s1 | 19.8 | mm |
Shoulder diameter inner ring | d1 | ≈33.74 | |
Width Inner ring | B | 34.1 | mm |
