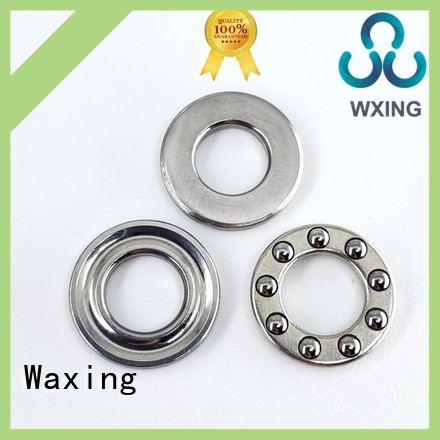

F7-15M 7x15x4.5 Full Stainless Steel Miniature Thrust Ball Bearings With Grooved Raceway
• 440 stainless steel race and ball
• 304 stainless steel cage
• 304 sheet steel and nitrile rubber combined seals
• Temperature range -30ºC to +110ºC
• Application for Cossion resistance conditions
| C&H | Dimensions (mm) | Load Ratings(N) | Mass | ||||||
| d | D | T | d1 | D1 | r | Cw | Cow | ≈(g) | |
| SF3-8M | 3 | 8 | 3.5 | 3.2 | 7.8 | 0.05 | 730 | 655 | 0.86 |
| SF6-12M | 6 | 12 | 4.5 | 6.2 | 11.8 | 0.15 | 1342 | 1559 | 2.16 |
| SF7-15M | 7 | 15 | 5.5 | 7.2 | 14.8 | 0.15 | 2961 | 3508 | 4.10 |
| SF9-17M | 9 | 17 | 5.0 | 8.2 | 16.8 | 0.20 | 2816 | 3508 | 4.0 |
• We accept the payment after your receiving and approving the bearings
• The goods must be returned with 30 days and brand new. We will pay the return charges only for the quality problem.
• The return is no for quality problem. Customer will pay the return charges.
| C&H | Dimensions (mm) | Load Ratings(N) | Mass | ||||||
| d | D | T | d1 | D1 | r | Cw | Cow | (g) | |
| F2-6 | 2 | 6 | 3 | 0.1 | 143 | 83 | 0.49 | ||
| F2X-7 | 2.5 | 7 | 3.5 | 0.1 | 199 | 120 | 0.81 | ||
| F3-8 | 3 | 8 | 3.5 | 0.15 | 212 | 140 | 1.21 | ||
| F4-9 | 4 | 9 | 4 | 0.15 | 221 | 160 | 1.37 | ||
| F4-10 | 4 | 10 | 4.5 | 0.15 | 355 | 245 | 1.93 | ||
| F5-11 | 5 | 11 | 4.5 | 0.15 | 340 | 245 | 2.22 | ||
| F6-12 | 6 | 12 | 4.5 | 0.15 | 390 | 315 | 2.48 | ||
| F7-15 | 7 | 15 | 5 | 0.2 | 795 | 630 | 4.22 | ||
| F8-16 | 8 | 16 | 5 | 0.2 | 535 | 445 | 4.81 | ||
| F9-17 | 9 | 17 | 5 | 0.2 | 815 | 710 | 4.99 | ||
| F10-18 | 10 | 18 | 5.5 | 0.2 | 800 | 710 | 6.01 | ||
| F3-7M | 3 | 7 | 3 | 3.2 | 6.8 | 0.05 | 497 | 440 | 0.47 |
| F3-8M | 3 | 8 | 3.5 | 3.2 | 7.8 | 0.05 | 859 | 771 | 0.86 |
| F4-9M | 4 | 9 |
The fabric of Waxing thrust ball bearing mounting is checked before production. It is assessed in terms of weight, print quality, defects, and hand feel. JLH mattresses ensures high-quality and comfortable sleeping
The production process of Waxing thrust ball bearing mounting is strictly inspected to ensure that fabric width, length, and appearance comply with the garment standards and regulations. Each spring is sealed in a strong fiber bag to prevent mould or insects effectively
Before Waxing thrust ball bearing mounting is bagged or boxed for sale, a team of inspectors scrutinizes the clothing for loose threads, flaws, and general appearance. With refined techniques and automatic production, JLH mattresses are of excellent quality
The labeling of Waxing thrust ball bearing mounting is ensured to contain all required information including registered identification number (RN), country of origin, and fabric content/care. Manufactured by strict quality control, each mattress is highly recommended
The design of Waxing thrust ball bearing mounting starts with a sketch, then a tech pack or CAD drawing. It is completed by our designers who transform customers' ideas into reality. JLH mattress has passed ISO 9001 2000
The product is skin-friendly. The fibers have a smooth feel and a natural wicking action that keeps moisture away from the skin.
